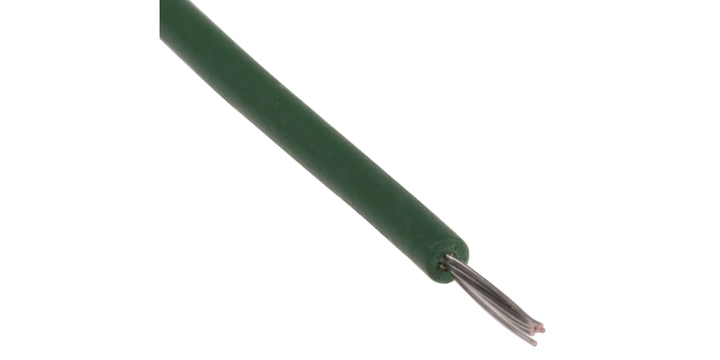

Rs Pro 8738958 Green 0.2 Mm² Hook up Wire, 24 Awg, 11/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)
Rs Pro 8738958 Green 0.2 Mm² Hook up Wire, 24 Awg, 11/0.16 Mm, 100m, Xlpe Insulation (1 Reel of 100 Metres)
Brand:
RS Pro
Model:
8738958
Specifications
infotip-icon
View other Electrical Wire  dimensions or variations
Please select at least one specification below.
Length
100 m
Voltage Rating
6 kV dc
Specification Met
UL 3239
Sheath Colour
Green
Insulation Material
XLPE
American Wire Gauge
24 AWG
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+105°C
Outer Diameter
1.5 mm
Number of Strands
11
Size of Strands
0.16 mm
Conductor Material
Tinned Copper
Core Strands
11/0.16 mm
Wire Style
UL3239
Insulation Wall Thickness
1.5 mm
