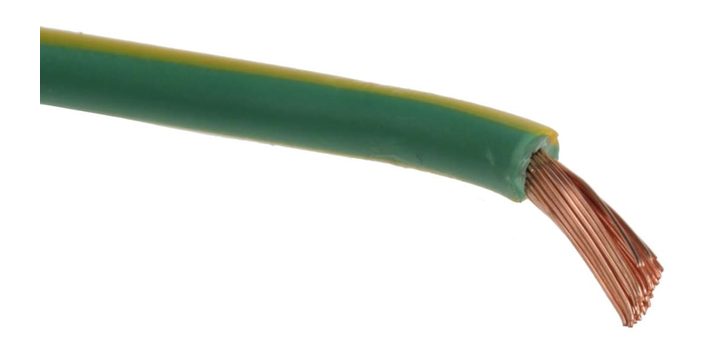

Rs Pro 8114463 Green/Yellow 4 Mm² Hook up Wire, 11 Awg, 56/0.3 Mm, 25m, Pvc Insulation (1 Reel of 25 Metres)
Rs Pro 8114463 Green/Yellow 4 Mm² Hook up Wire, 11 Awg, 56/0.3 Mm, 25m, Pvc Insulation (1 Reel of 25 Metres)
Brand:
RS Pro
Model:
8114463
Specifications
infotip-icon
View other Electrical Wire  dimensions or variations
Please select at least one specification below.
Length
25 m
Voltage Rating
1000 V
Specification Met
BS 6231
Sheath Colour
Green/Yellow
Insulation Material
PVC
American Wire Gauge
11 AWG
Maximum Operating Temperature
+70°C
Outer Diameter
4.8 mm
Number of Strands
56
Size of Strands
0.3 mm
Conductor Material
Copper
Core Strands
56/0.3 mm
Cable Type
Control
Cable Shape
Single Core
Insulation Wall Thickness
0.8 mm
