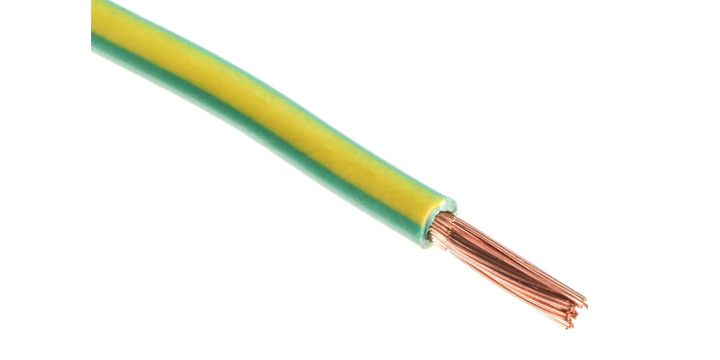

Rs Pro 8111445 Green/Yellow 4 Mm² Hook up Wire, 12 Awg, 52/0.3 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
41 A
Voltage Rating
1 kV
Specification Met
CSA C22.2 Type TEW, UK BS 6231, UL 1015
Sheath Colour
Green/Yellow
Insulation Material
PVC
American Wire Gauge
12 AWG
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
+105 (Air) °C, +60 (Oil) °C
Outer Diameter
4.3 mm
Number of Strands
52
Size of Strands
0.3 mm
Conductor Material
Annealed Copper
Core Strands
52/0.3 mm
Cable Shape
Single Core
Insulation Wall Thickness
0.8 mm
Product Description
AU $ 366.24
