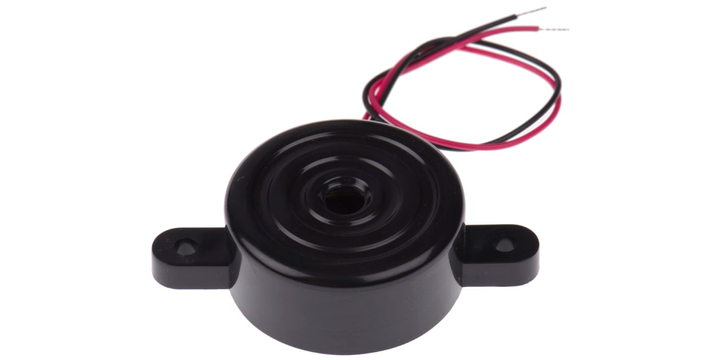

Rs Pro 7542006 86dB Panel Mount Continuous Internal Piezo Buzzer, 33.7 (dia.) X 14.5mm, 3V Dc Min, 28V Dc Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
Panel Mount
Height
14.5 mm
Dimensions
33.7 (Dia.) x 14.5 mm
Diameter
33.7 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
3V dc
Maximum Supply Voltage
28V dc
Sound Level
86 dB
Tone Type
Continuous
Maximum Frequency
4 kHz
Supply Current
5 mA
Minimum Frequency
3000 Hz
Product Description
AU$ 4.96
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | AU$ 4.96 |
