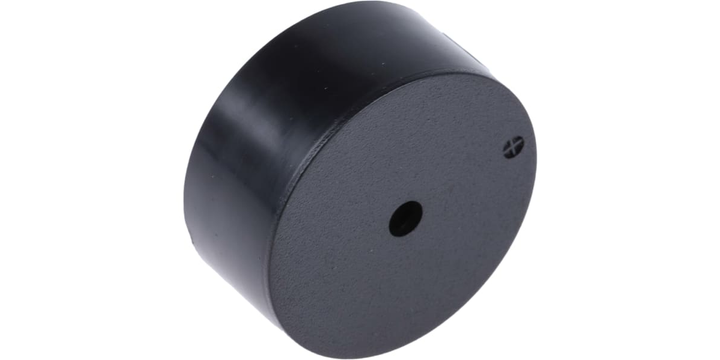

Rs Pro 7243178P 100dB Through Hole Continuous Internal Piezo Buzzer, 31.25 (dia.) X 14mm, 5V Dc Min, 15V Dc Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
Through Hole
Height
14 mm
Dimensions
31.25 (Dia.) x 14 mm
Diameter
31.25 mm
Drive Type
Internal
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+60°C
Minimum Supply Voltage
5V dc
Maximum Supply Voltage
15V dc
Sound Level
100 dB
Tone Type
Continuous
Maximum Frequency
4 kHz
Supply Current
15 mA
Minimum Frequency
3000 Hz
Product Description
AU $ 46.95
Quantity:
EA
MOQ of 5 EA
Bundle of 1 EA
This item is sold by
SG-4570630354
