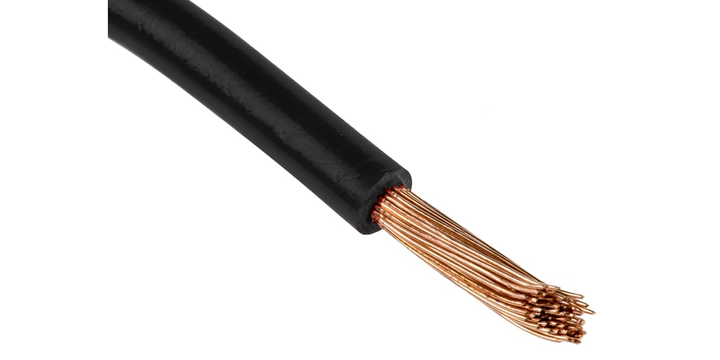

Rs Pro 6285342 Black 16 Mm² Hook up Wire, 6 Awg, 115/0.4 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
100 A
Voltage Rating
600 V
Specification Met
CSA C22.2 Type TEW, UK BS 6231, UL 1283
Sheath Colour
Black
Insulation Material
PVC
American Wire Gauge
6 AWG
Maximum Operating Temperature
+105°C
Outer Diameter
8.3 mm
Number of Strands
126
Size of Strands
0.4 mm
Conductor Material
Annealed Copper
Core Strands
115/0.4 mm
Cable Shape
Single Core
Insulation Wall Thickness
1.6 mm
Product Description
AU $ 1,166.39
