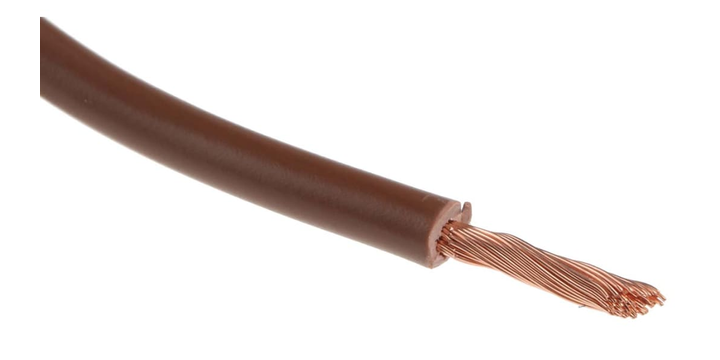

Rs Pro 5441771 Brown 2.5 Mm² Hook up Wire, 13 Awg, 50/0.25 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

AUD - AU$

Rs Pro 5441771 Brown 2.5 Mm² Hook up Wire, 13 Awg, 50/0.25 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

View Brand

Rs Pro 5441771 Brown 2.5 Mm² Hook up Wire, 13 Awg, 50/0.25 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)

Brand:	RS Pro
Model:	5441771

Technical Data Sheets

Contains SVHC - Bis(2-ethylhexyl)phthalate (DEHP) - CAS No. 117-81-7

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

RS PRO Guide UK

RS PRO Datasheet

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

750 V

Specification Met

BS 6004, RoHS Compliant

Sheath Colour

Brown

Insulation Material

PVC

American Wire Gauge

13 AWG

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

+70°C

Outer Diameter

4.1 mm

Number of Strands

Size of Strands

0.25 mm

Conductor Material

Annealed Copper

Core Strands

50/0.25 mm

Cable Shape

Single Core

Wire Style

2491X

Insulation Wall Thickness

0.8 mm

Product Description
