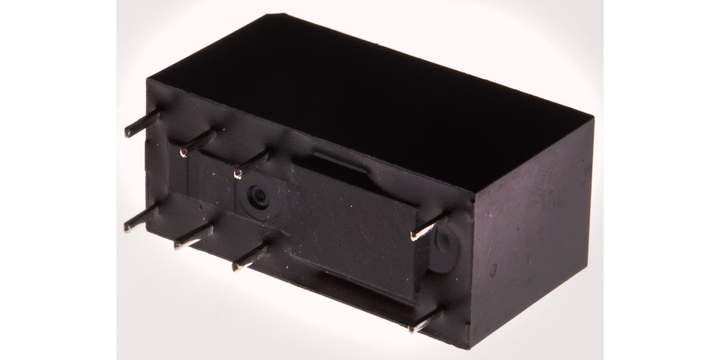

Rs Pro 476791 Pcb Mount Power Relay, 24V Dc Coil, 8A Switching Current, Dpdt
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
29 mm
Application
Power
Mounting Type
PCB Mount
Depth
12.7 mm
Height
15.7 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
24 V dc
Standards Met
CQC 02001001951, RoHS Compliant, UL E134517, VDE 116934
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
440 V ac
Maximum Switching Voltage DC
300 V dc
Coil Power
400 mW
Coil Resistance
1.44 Kilo Ohm
Isolation Coil To Contact
5 kV ac
Switching Current
8 A
Maximum Switching Power AC
2 kVA
Number of Poles
2
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
AU $ 11.67
Quantity:
EA
