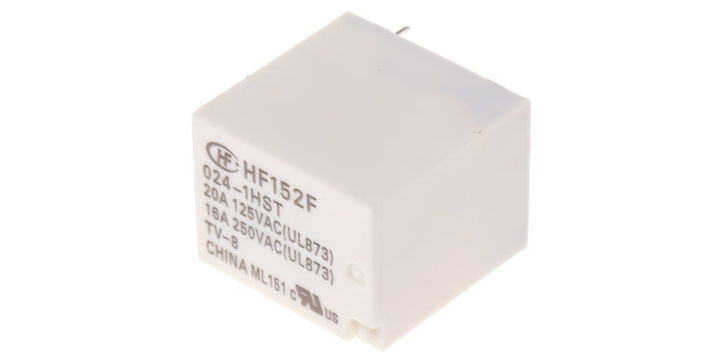

Rs Pro 476735 Pcb Mount Power Relay, 24V Dc Coil, 16A Switching Current, Spst
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
21 mm
Application
Power
Mounting Type
PCB Mount
Depth
16 mm
Height
20.6 mm
Contact Material
Silver Alloy
Contact Configuration
SPST
Coil Voltage
24 V dc
Standards Met
IEC 60335-1, RoHS Compliant, UL E134517, VDE 40017837
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
400 V ac
Coil Power
360 mW
Coil Resistance
1.6 Kilo Ohm
Isolation Coil To Contact
2.5 kV ac
Switching Current
16 A
Maximum Switching Power AC
4.7 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
AU $ 7.70
