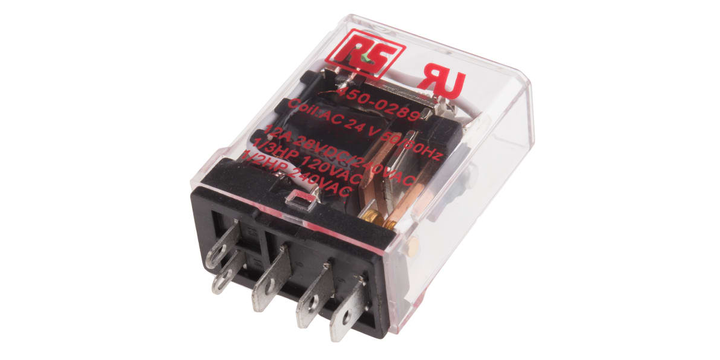

Rs Pro 4500289 Pcb Mount Power Relay, 24V Ac Coil, 15A Switching Current, Spdt
Rs Pro 4500289 Pcb Mount Power Relay, 24V Ac Coil, 15A Switching Current, Spdt
Brand:
RS Pro
Model:
4500289
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Length
27 mm
Application
Power
Mounting Type
PCB Mount
Depth
13.5 mm
Height
35.6 mm
Contact Material
Silver Alloy
Contact Configuration
SPDT
Coil Voltage
24 V ac
Standards Met
CUR E125370, UL E125370
Minimum Operating Temperature
-45°C
Maximum Operating Temperature
+55°C
Terminal Type
PCB Pin
Maximum Switching Voltage AC
240 V ac
Maximum Switching Voltage DC
28 V dc
Coil Power
1.2 W
Coil Resistance
180 Ohm
Isolation Coil To Contact
1.5 kV ac
Maximum Switching Power DC
450 W
Switching Current
15 A
Maximum Switching Power AC
3.6 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
1000000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
