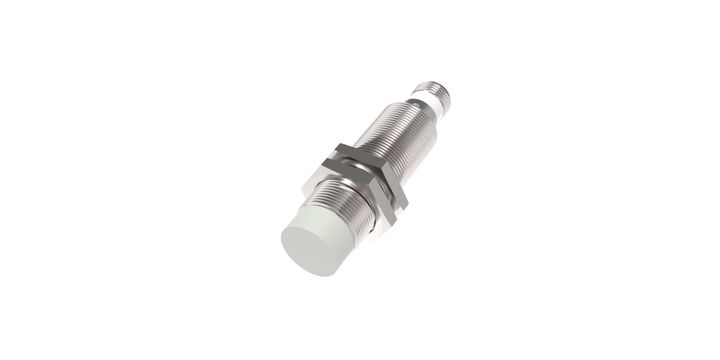

Rs Pro 2522045 Inductive Barrel-Style Proximity Sensor, M18 X 1, 8 Mm Detection, Pnp Output, 10 - 30 V Dc, IP67

View Brand

Rs Pro 2522045 Inductive Barrel-Style Proximity Sensor, M18 X 1, 8 Mm Detection, Pnp Output, 10 - 30 V Dc, IP67

Brand:	RS Pro
Model:	2522045

Technical Data Sheets

RS PRO Datasheet

Specifications

View other Proximity Sensors dimensions or variations

Length

71 mm

Thread Size

M18 x 1

Mounting Type

Non-Flush

Body Style

Barrel

Supply Voltage

10 → 30 V dc

IP Rating

IP67

Maximum Operating Temperature

70°C

Terminal Type

M12 Connector

Switching Frequency

800 Hz

Housing Material

Nickel Copper Alloy

Detection Range

8 mm

Output Type

PNP

Sensor Technology

Inductive

Product Description

AU $ 61.88
