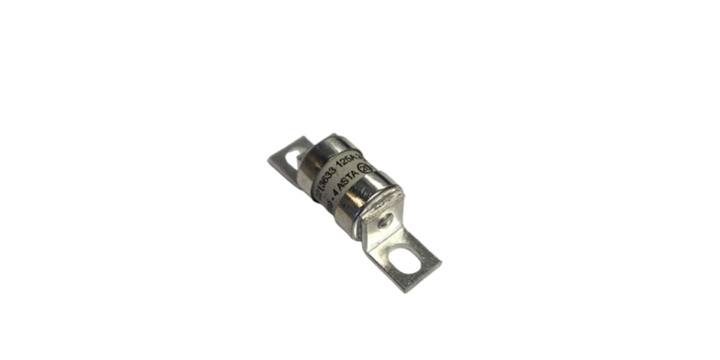

Rs Pro 2213634 125A Bolted Tag Fuse, 120 V Dc, 240 V Ac, 59mm (1 Bag of 10)
Technical Data Sheets
Specifications
Please select at least one specification below.
Series
LSA
Current Rating
125 A
Voltage Rating
120 V dc, 240 V ac
Overall Length
85 mm
Body Length
32.6 mm
Fixing Centres
59 mm
Fuse Standard
IEC 60269-4/BS 88-4
Body Diameter
41.5 mm
Tag Width
25.4 mm
Tag Type
Bolted
Application Category
aR
This spec is not available in the specification table.
Tag Orientation
Offset
This spec is not available in the specification table.
Product Description
AU $ 276.84
