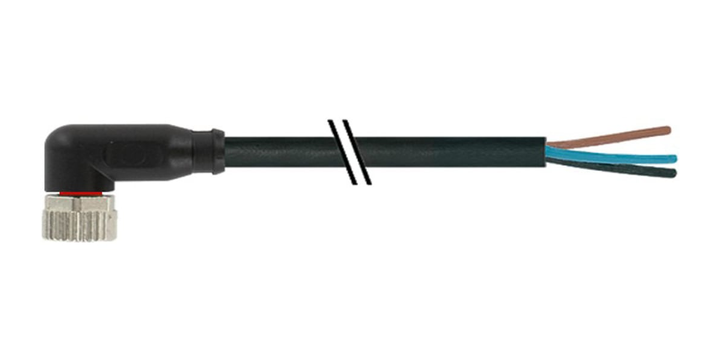

Rs Pro 1747836 Female 3 Way M8 to Unterminated Sensor Actuator Cable, 2m
Specifications
Please select at least one specification below.
Current Rating
4 A
Operating Temperature Range
-25 → +85°C
Voltage Rating
30 V ac/dc, 50 V ac, 60 V dc
Sheath Colour
Black
Length
2 m
IP Rating
IP65, IP66K, IP67
Connector Type 1
M8
Connector Type 2
Unterminated
Shielded/Unshielded
Unshielded
Conductor Material
Copper
Insulation Material
PVC
Sheath Material
Polyurethane PUR
This spec is not available in the specification table.
Connector 1 Gender
Female
This spec is not available in the specification table.
Connector 1 Housing Gender
Female
This spec is not available in the specification table.
Number of Cores
3
This spec is not available in the specification table.
Minimum Bend Radius
10 x 10 mm
This spec is not available in the specification table.
American Wire Gauge
24 AWG
This spec is not available in the specification table.
Cable Shape
Round
This spec is not available in the specification table.
Specification Met
cLus Certified, CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL
This spec is not available in the specification table.
Product Description
AU $ 22.50
