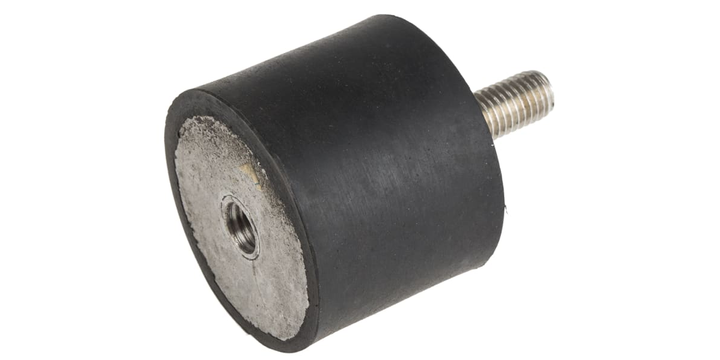

Rs Pro 1712610 M10 Anti Vibration Mount, Male to Female Bobbin With 160.6kg Compression Load (1 Bag of 2)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M10
Diameter
50 mm
Overall Height
40 mm
Series
AV Type B
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
160.6 kg
Metalwork
Stainless Steel
Shore Hardness
60 Shore A
Shearing Load
53 kg
Compression Deflection
4 mm
Product Description
AU $ 39.30
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | AU $ 39.30 |
