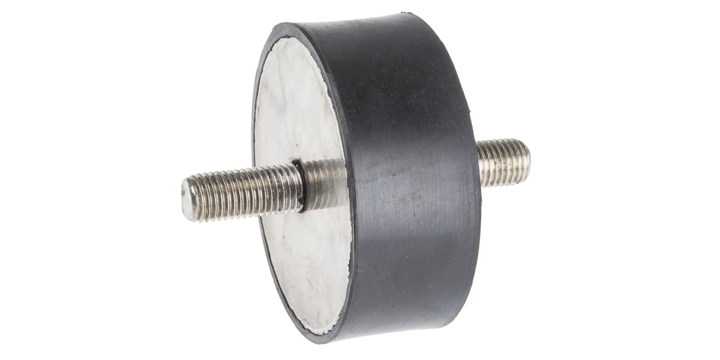

Rs Pro 1712589 M16 Anti Vibration Mount, Male to Male Bobbin With 726.56kg Compression Load
Rs Pro 1712589 M16 Anti Vibration Mount, Male to Male Bobbin With 726.56kg Compression Load
Brand:
RS Pro
Model:
1712589
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M16
Diameter
100 mm
Overall Height
40 mm
Series
AV Type A
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
726.56 kg
Metalwork
Stainless Steel
Shore Hardness
55 Shore A
Shearing Load
169.6 kg
Compression Deflection
4 mm
Product Description
