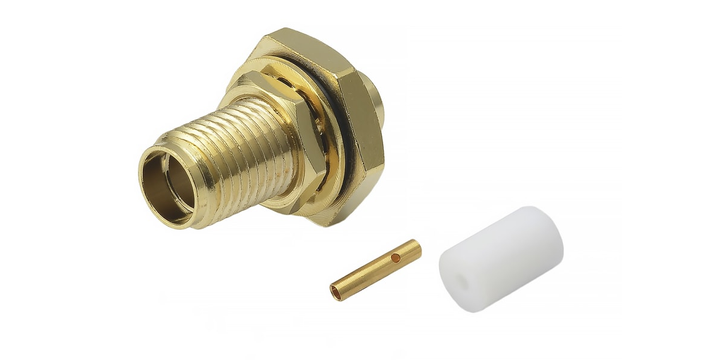

Rs Pro 1706940 50 Ohm Straight Bulkhead, Sma Connector , Plug, RG405/U
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
Bulkhead
Contact Material
Beryllium Copper
Gender
Male
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold
Minimum Operating Temperature
-65°C
Maximum Operating Temperature
+165°C
Impedance
50 Ohm
Body Plating
Gold
Coaxial Connector Type
SMA Connector
Cable Type
RG405/U
Operating Frequency
26.5 GHz
Polarity
Normal
Size
Standard
Bulkhead
No
This spec is not available in the specification table.
Mating Type
Threaded
This spec is not available in the specification table.
Series
SMA 27G
This spec is not available in the specification table.
Product Description
AU $ 25.48
Quantity:
EA
This item is sold by
SG-4570630354
