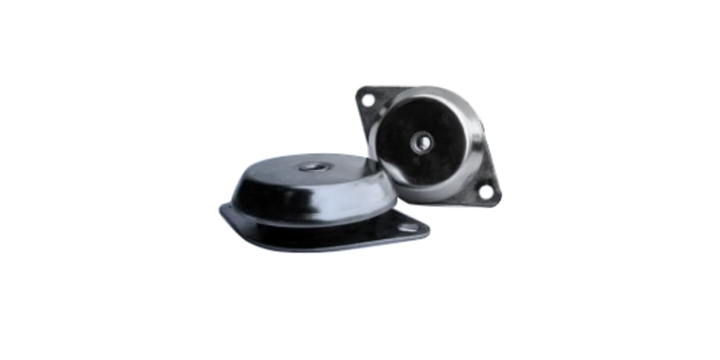

Rs Pro 1623218 M10 Anti Vibration Mount With 118kg Compression Load
Rs Pro 1623218 M10 Anti Vibration Mount With 118kg Compression Load
Brand:
RS Pro
Model:
1623218
Technical Data Sheets
Specifications
infotip-icon
View other Anti Vibration Mounts dimensions or variations
Please select at least one specification below.
Thread Size
M10
Diameter
120 mm
Overall Height
35 mm
Series
KPR
Material
Rubber
Maximum Operating Temperature
+100°C
Compression Load
118 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Compression Deflection
3.5 mm
Static Load Capacity
118 kg
