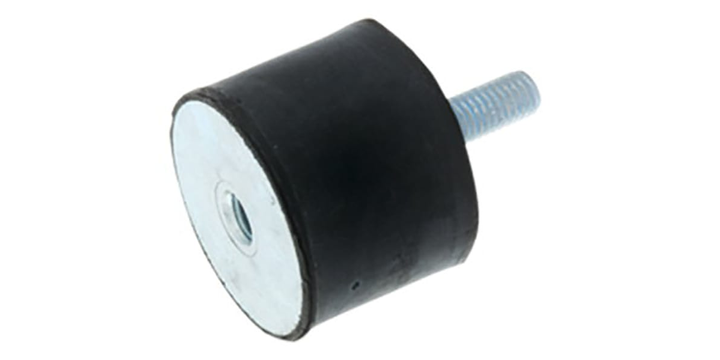

Rs Pro 1264331 M10 Anti Vibration Mount, Male to Female Bobbin With 313.06kg Compression Load
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M10
Diameter
70 mm
Overall Height
50 mm
Series
AV Type B
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
313.06 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
80 kg
Compression Deflection
5 mm
Product Description
AU $ 38.28
