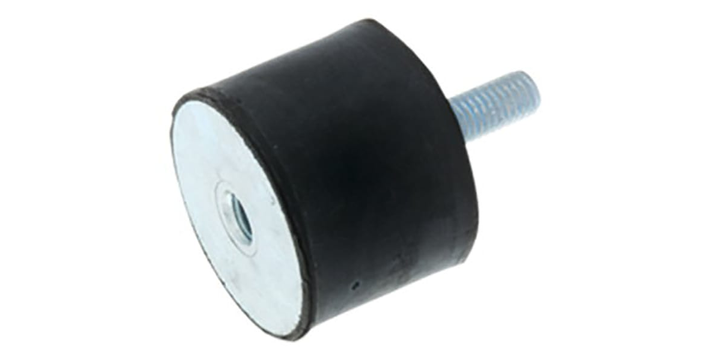

Rs Pro 1264304 M6 Anti Vibration Mount, Male to Female Bobbin With 43.3kg Compression Load (1 Bag of 2)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M6
Diameter
25 mm
Overall Height
30 mm
Series
AV Type B
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Female Bobbin
Compression Load
43.3 kg
Metalwork
Zinc Plated Steel
Shore Hardness
65 Shore A
Shearing Load
15.84 kg
Compression Deflection
3 mm
Product Description
AU $ 23.43
