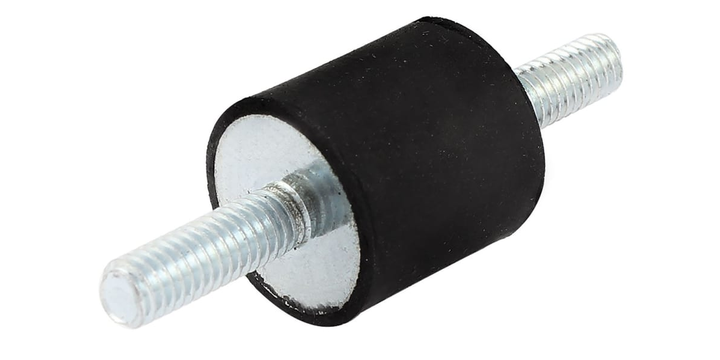

Rs Pro 1263965 M8 Anti Vibration Mount, Male to Male Bobbin With 54kg Compression Load (1 Bag of 4)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M8
Diameter
30 mm
Overall Height
22 mm
Series
AV Type A
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
54 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
19 kg
Compression Deflection
2.2 mm
Product Description
AU $ 32.69
