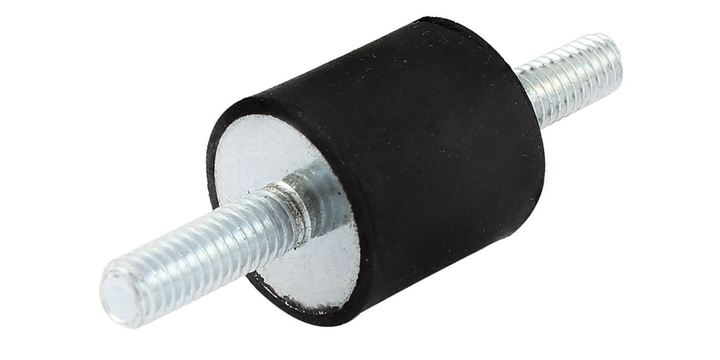

Rs Pro 1263958 M6 Anti Vibration Mount, Male to Male Bobbin With 27.36kg Compression Load (1 Bag of 4)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M6
Diameter
25 mm
Overall Height
25 mm
Series
AV Type A
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
27.36 kg
Metalwork
Zinc Plated Steel
Shore Hardness
55 Shore A
Shearing Load
10.56 kg
Compression Deflection
2.5 mm
Product Description
AU $ 35.48
Quantity:
EA
