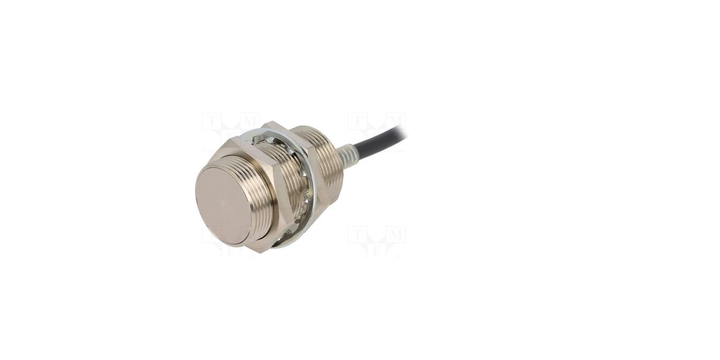

Omron Proximity Sensor (2M)
Brand: | Omron |
Model: | E2E-X10Y1 2M |
Technical Data Sheets
Product Description
- Sensing head size - M30
- Type - Cylinder type (with screw), Shielded
- Power source - AC 2-wire models
- Sensing distance -10 mm ±10%
- Setting distance - 0 to 8 mm
- Differential distance - 10% max. of sensing distance
- Sensing object - Ferrous metal (Sensitivity lowers with non-ferrous metals.)
- Standard sensing object - Iron 30 x 30 x 1 mm
- Response frequency - 25 Hz
- Power supply voltage - 24 to 240 VAC
- Operating voltage range - 20 to 264 VAC
- Leakage current - 1.7 mA max.
- Control output (Switching capacity) - 5 to 300 mA
- Ambient temperature (Operating) -40 to 85
- Ambient temperature (Storage) -40 to 85
- Ambient humidity (Operating) 35 to 95% RH
- Ambient humidity (Storage) 35 to 95% RH
- Temperature influence - ±10% max. of sensing distance at 23 in the temperature range of -25 to 70 - ±15% max. of sensing distance at 23 in the temperature range of -40 to 85
- Voltage influence - ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
AU $ 99.85
Quantity:
EA
