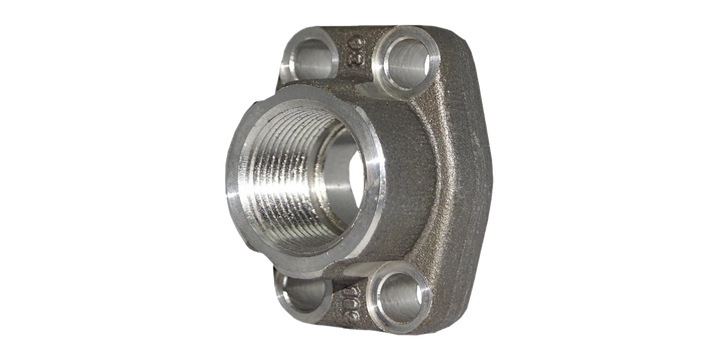

Oleo Tecnica Carbon Steel Sae Threaded 4-Bolt Flange 2" Npt O-Ring Side SAE-H-IT-N-6-O-20
Oleo Tecnica Carbon Steel Sae Threaded 4-Bolt Flange 2" Npt O-Ring Side SAE-H-IT-N-6-O-20
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-N-6-O-20 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
NPT
Flange Size
2"
Configuration
O-Ring Side
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
62
Series
6000
Working Pressure
200 - 414
bar
Standard
Sae J518
Sold with
O-Ring
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M20
This spec is not available in the specification table.
Screw Length
70
mm
This spec is not available in the specification table.
Screw Torque (NM)
550
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel Sae Threaded 4-Bolt Flange 2" Npt O-Ring Side SAE-H-IT-N-6-O-20
- Oleo Tecnica Carbon Steel ST52.3 SAE Threaded 4-Bolt Flange, Code 62 6000 PSI, 2” NPT O-Ring Side, 4-Bolt Flange w/NBR O-Ring, SAE J518 Standard
- 2"NPT HYDR SAE FLANGE 6000
- ORING SIDE
AU $ 55.86
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | AU $ 55.86 |
Quantity:
EA
This item is sold by
SG-8088441545
