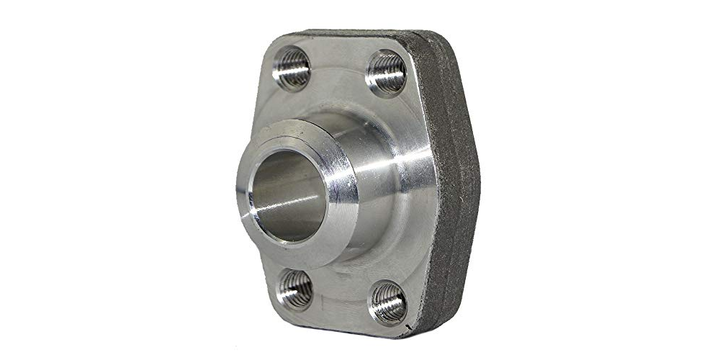

Oleo Tecnica Carbon Steel ST52.3 Sae Flange 4-bolt Flange w/ Metric Bolt Thread SAE-H-IT-BW-3-F-12-43-29
Oleo Tecnica Carbon Steel ST52.3 Sae Flange 4-bolt Flange w/ Metric Bolt Thread SAE-H-IT-BW-3-F-12-43-29
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-BW-3-F-12-43-29 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
1"
Configuration
Flat Side
For Pipe Schedule
SCH80
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Standard
Sae J518
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M10
This spec is not available in the specification table.
Screw Length
35
mm
This spec is not available in the specification table.
Screw Torque (NM)
70
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel ST52.3 Sae Flange Code 61 3000 Psi, 1 Butt Weld SCH80 Flat Side, 4-bolt Flange w/ Metric Bolt Thread, Sae J518
Carbon Steel ST52.3 Sae Flange Code 61 3000 Psi, 1 Butt Weld SCH80 Flat Side, 4-bolt Flange w/ Metric Bolt Thread, Sae J518
About this item
- SAE Code 61 with optimum working pressure of 3000 PSI
- Body made via normalized forgings which is strong and durable
- Made of ST52.3 steel material
- Part connect with female flange (O-ring side) to make a complete set
- Butt weld (weld-on) connection for pipes of various size and thickness
Technical Spec
- Netto Weight 1.000 KG
- Height Dimension 7.900
- Length Dimension 6.800
- Width Dimension 4.100
- Dimension uom 6.800
AU $ 15.88
Quantity:
EA
Stock:
156 EA in stock
