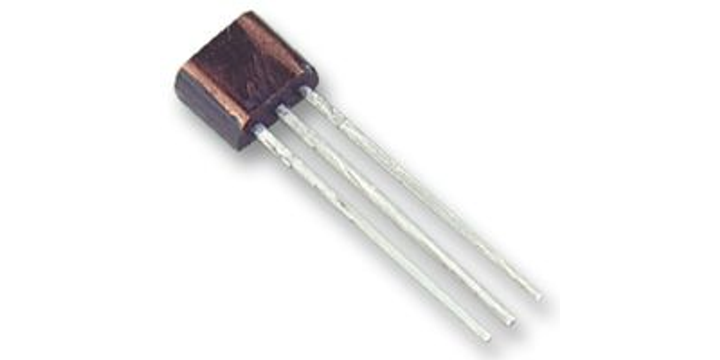

Multicomp Pro BC337 Transistor, NPN,45V, 500MA, TO-92
Multicomp Pro BC337 Transistor, NPN,45V, 500MA, TO-92
Brand: | MULTICOMP PRO |
Model: | BC337 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Termination Type
Through Hole
Operating Temperature Min
-65°C
Operating Temperature Max
150°C
Transistor Case Style
TO-92
Collector Emitter Voltage Max
45 V
Power Dissipation
625 mW
DC Current Gain hFE
400 hFE
Transition Frequency
100 MHz
DC Collector Current
500mA
Collector Emitter Saturation Voltage Vce(on)
700 mV
Current Ic hFE
100 mA
Voltage Vcbo
50 V
Gain Bandwidth ft Min
60 MHz
Gain Bandwidth ft Typ
200 MHz
RohsCompliant
YES
This spec is not available in the specification table.
Transistor Polarity
NPN
This spec is not available in the specification table.
No. of Pins
3Pins
This spec is not available in the specification table.
Collector Emitter Voltage V(br)ceo
45 V
This spec is not available in the specification table.
Product Description
AU $ 0.69
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
