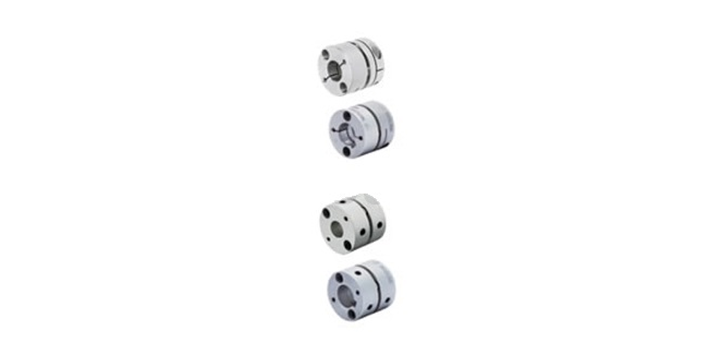

Misumi GCPSSWK33-11-14 Disc Couplings High Flexible, Single Disc
Misumi GCPSSWK33-11-14 Disc Couplings High Flexible, Single Disc
Specifications
infotip-icon
View other Shaft Couplings dimensions or variations
Please select at least one specification below.
Length
28.5 mm
Body Material
Aluminum Alloy
Shaft Bore Diameter 1
11 mm
Shaft Bore Diameter 2
14 mm
Outer Diameter
33 mm
Allowable Torque Range
3.01 - 5.00 Nm
Shaft Tightening Method
Set Screw
Shaft Bore Shape
Keywayed Bore (d1/d2 Side)
Single/Double
Single
Allowable Angular Misalignment [deg]
2
deg
This spec is not available in the specification table.
Max. Rotational Speed [r/min]
10000
This spec is not available in the specification table.
Series Name
Disc
This spec is not available in the specification table.
Allowable Misalignment
Angular Misalignment / Axial Misalignment
This spec is not available in the specification table.
Max. Rotational Speed Range
4001 - 10000 r/min
This spec is not available in the specification table.
Allowable Axial Misalignment
0
mm
This spec is not available in the specification table.
